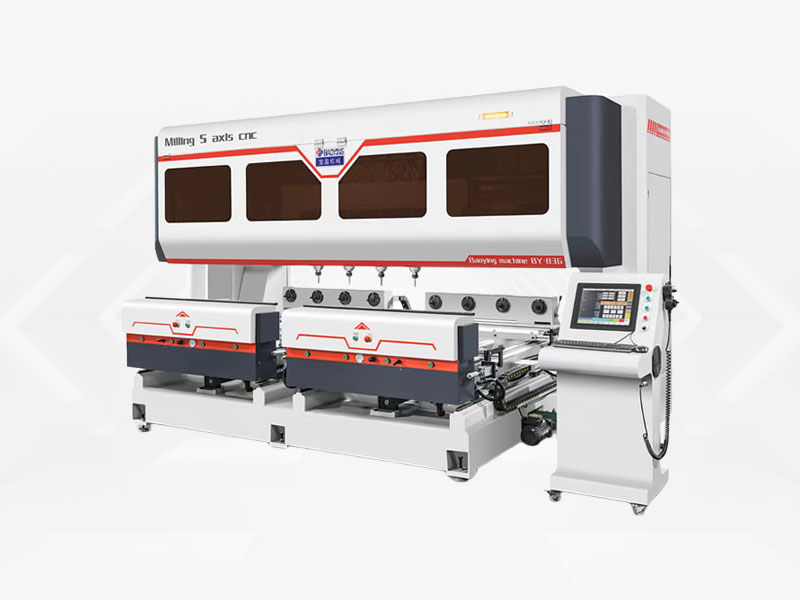

The multi-functional composite machining center adopts the programming method of combining the combination of processing technology and 3D software import, and perfectly combines the processes of turning and milling, drilling, milling, special-shaped, plane sanding, etc., and automatically feeds the material, processing two at a time, and combines function and efficiency. One positioning, multiple processes are processed sequentially to reduce the error caused by multiple positioning and the production of molds.
| Length of processing material | 1200mm |
| Ejector pin spacing | 220mm |
| Program import method | 3D import |
| Number of turning knives | 8 Put |
| Milling motor power | 5.5KW*2 |
| Slot milling motor power | 3.7KW*2 |
| Drilling motor power | 1.5KW*2 |
| Sanding motor power | 4KW*1 |
| Abrasive belt specifications | 1650*140mm |
| Spindle power | 5.5KW*1 |
| X-axis servo motor power | 1.5KW |
| Y-axis servo motor power | 1.5KW |
| Z-axis servo motor power | 1.5KW |
| Total power | 36KW |
| Weight | 3000Kg |
| Machine size | Approx. (L) (W) 2380 mm * 3970 mm * 2000 mm (H) |
| The above parameters are for reference only, the actual product will change according to the processing performance requirements. | |
