BY-836 16-tool five-axis machining center

BY-836 16-tool five-axis machining center

Product introduction

According to the characteristics of various furniture special-shaped accessories, this machine adopts five-axis linkage, which has unique advantages for all kinds of products that can be processed by both ends to the top. This machine has good adaptability to the diversification, complexity and generalization of furniture accessories, and the production of multiple products at the same time also ensures production efficiency.

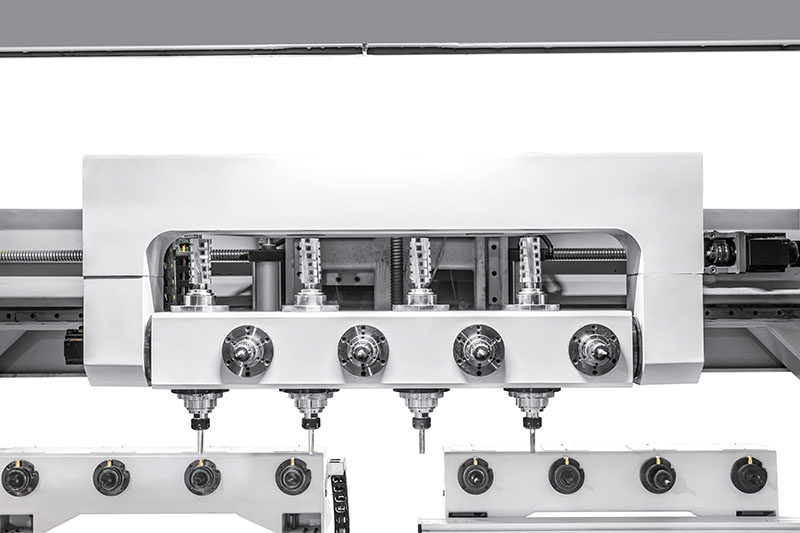

Product detail drawing
Product parameter
Spindle motor 5.5KW*4/3.7KW*4
Tool axis spacing 300mm
Max.machining length 1200mm
X-axis servo motor 2.5KW
Y-axis servo motor 1.5KW*2
Z-axis servo motor 2.5KW*1
A-axis servo motor 1KW
C-axis servo motor 1.5KW*2
Idle speed 30m/min
Machining speed 15m/min
Control System LNC
A-axis reducer RV precision reducer
C-axis reducer Ultra-precision double lead reducer
Machine Weight 8000KG
Machine size Approx. (L) 4230 * (W) 2250 * 2340 mm (H)
The above parameters are for reference only, the actual product will change according to the processing performance requirements.
Processing example
